Llandinam Bridge

Cadw's description

Location

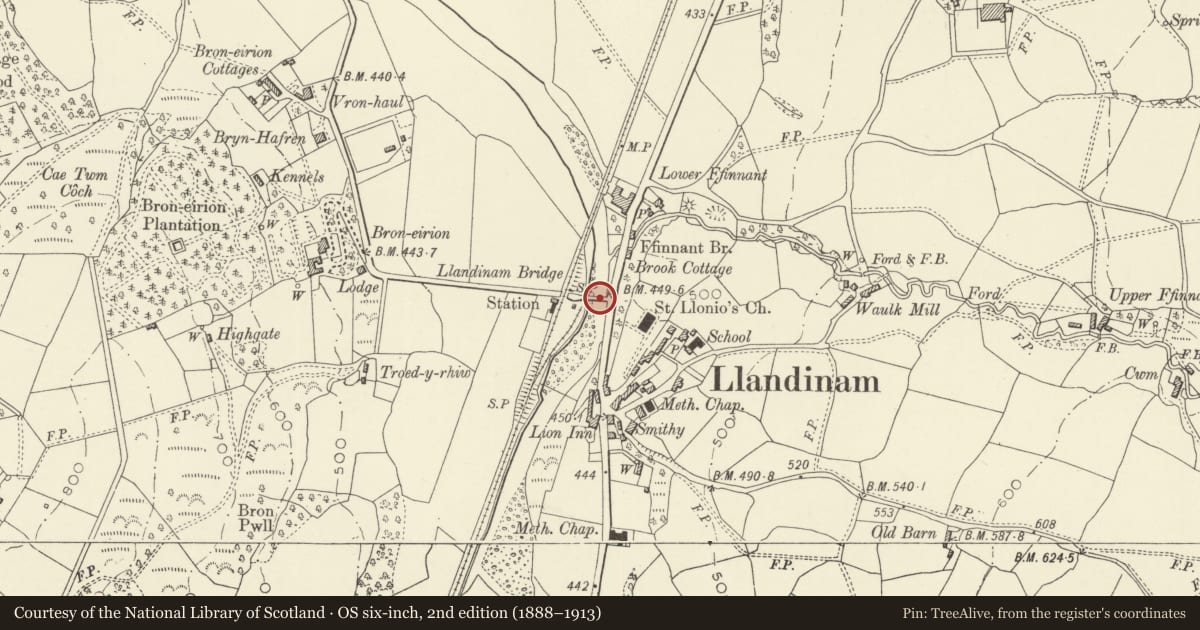

Set at right angles to the main A.470 on the northern edge of Llandinam village, and carrying the by-road west over the River Severn.

History

Constructed in 1846 to the design of Thomas Penson, the county surveyor of Montgomeryshire and cast by the Hawarden Ironworks to replace an earlier bridge. This is one of the first iron bridges in the County and is constructed on the Telford principle. This type of construction is similar to that used by Telford at Craigellachie and at Tewkesbury, on the bridges cast by William Hazeldine of Shrewsbury at the Plas Kinaston foundry. After Hazeldine's death in c.1840 some of the castings and patterns were sold to the Hawarden Iron Works. Given the fact that Telford was County Surveyor for Shropshire, his pioneering work on bridges would have been well known to Penson and as the Llandinam Bridge was actually cast at Hawarden, Telford's original castings may well have been re-used. It is also the first of a fine series of iron bridges spanning the River Severn. This bridge is of further historical interest in that the construction of the foundations and approaches was the first public contract for the famous industrialist, David Davies, who was born in Llandinam.

Exterior

Cast-iron construction comprising a single segmental arch spanning 27m. The construction has three ribs, each comprising an arch ring, above which are raking struts carrying the single carriageway deck. The arch rings are each composed of segments of five cusped panels; the struts above forming a lattice work pattern and are tied and spaced apart by circular rods and cross members. At deck level there is a panel-fronted horizontal girder attached to which are cast iron railings with mid rail; and cusping to alternate panels at the top. The almost flat running surface, falling slightly to the W, is approximately 3.4m wide. At the E end, on the downstream side, the girder bears the cast inscription 'Thomas Penson County Surveyor', and on the upstream side, 'Hawarden Iron Works'. At the W end of both sides is the date '1846'. At the W end the railings continue and curve outwards towards the former railway station, and on the upstream side retain an iron diamond-shaped Montgomeryshire County Council loading restriction sign, dated 1906, restricting the superimposed axle weight to 3 tons. At the E end there are undressed stones parapets at the corners and attached railings that continue behind the statue of David Davies. The bridge is buttressed by raking abutments of large ashlar blcoks, sweeping out to terminal piers.

Reason for designation

Graded II* as a well-preserved cast-iron bridge of special interest for its early construction on the Telford principle, and of group value with the pedestal and statue of David Davies of Llandinam.
