Waen Lock, Monmouthshire and Brecon Canal

Cadw's description

Location

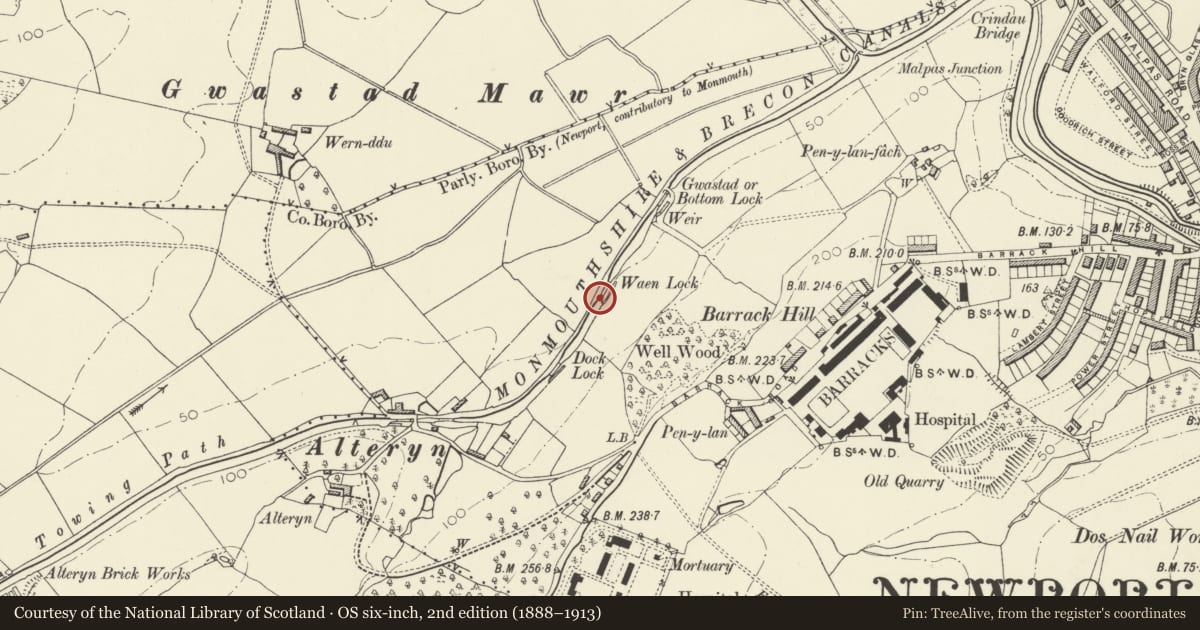

Isolated location. Situated approximately 150 metres NE of Dock Lock.

History

The eastern branch of the Monmouthshire and Brecon Canal was authorised by Act of Parliament in 1792, and officially opened in 1799. It ran from Newport to Pontnewynydd, and was engineered by Thomas Dadford Jnr. The canal connected with several tramroads belonging to the same company (Monmouthshire Canal Navigational Company), carrying coal down to the wharves. The branch was 17.7 km long, and rose 136.2 metres through 42 locks. The contemporary western branch, 19 km long, ran to Crumlin. In 1812, the eastern branch was connected to the Brecon and Abergavenny Canal at Pontymoile Basin, and this became the main line. In 1853-55, the Monmouthshire Railway and Canal Company built a railway down to Newport, the company amalgamating with the Great Western Railway in 1880. The canal then became increasingly disused. The Crumlin branch closed in 1949, the main line in 1962.

Exterior

Lock chamber of brick construction with intermittent ashlar blocks; tooled sandstone copings (some missing) and quoins. Rebate for removed lock gate to NE. with splayed rubble retaining walls for some 10 metres beyond; stone copings. Deep overflow ditch on SE side. Rubble weir at SW end, with splayed retaining walls beyond.

Reason for designation

Listed as a significant element of the engineering works associated with the Monmouthshire and Brecon Canal.
