286 Tennent Street

The Department's description

Exterior description and setting

An asymmetrical, two-bay, two-storey-with-attic terraced brick house with projecting front gable to first floor and attic level; wall-head dormer and bay windows, constructed between 1907-09 and located to the west side of Tennent Street, in the Shankill area of Belfast. Facing east and rectilinear on plan with a two-storey, gabled return, single-storey lean-to structure and internal courtyard to the rear.

Pitched, red tile roof with roll-moulded red clay ridge tiles; wide brick chimney with heavy bands, double moulded detail on principal face, plain replacement clay pots. Wall head dormer-window to attic with pitched roof as above; decorative timber barge boards; central modern skylight to rear roof. Walling is Flemish bonded brick with to ground floor, decorative red-tiles to upper levels of main elevation; English Garden Wall bonded to rear with roughcast to first floor. uPVC rainwater goods; decorative box hopper to left cheek of main elevation inscribed ‘1907’. uPVC windows throughout; glazing bars to main elevation (ground floor of rear elevation not viewed); flat arch heads; offset painted brick sills with concrete sills to parts of rear ground floor; decorative terracotta vents.

Principal elevation is two openings wide at ground floor and projects from adjoining terraces; white uPVC front door with moulded brick, camber-arch surround; surmounted by rounded arch motif in black brick. Fully glazed bay-window to right, on brick plinth. Projecting gable on first and attic level supported by timber beam and square timber posts to each corner; rebuilt dwarf walls between terraces act as plinths; masonry columns in ionic style act as secondary supports. Wide, central window to first floor with small canopy; smaller window to attic level, also with canopy. Decorative tiling horizontally aligned with sill and lintel of window openings on first and attic level.

The south elevation is abutted by adjoining terrace (HB26/36/001E).

Rear (west) elevation abutted by two-storey pitched-roof return to right; south cheek is blank; west gable has central window to first floor. Lean-to single-storey brick and re-roofed structure on ground floor between rear boundary wall and gable of return (formerly the coal shed). Single-storey rear wall extends west forming boundary wall to internal yard; timber sheeted and braced door to left; ground floor walls comprising internal yard painted white. (Left cheek of return not viewed). Principal rear elevation has central window on ground and first floor; roughcast to first floor; attic window to left-side above return.

The north elevation is abutted by the adjoining terrace (HB26/36/001G).

Setting

Located on the western side of Tennent Street in an urban
setting, between Crumlin and Shankill Roads. Small, newly paved garden with dwarf brick wall and cast-iron gate to the east along Tennent Street; long, narrow garden plot at rear, running west to boundary wall. A paved walkway extends along rear of all properties in terrace, between garden plots and rear of buildings but has been sealed with locked gates to the south. Mixed use business park and apartment complex to west, on site of former Edenderry Spinning Mill. Crumlin Road Presbyterian Church (HB26/36/009) located to the north-east on the corner of Crumlin Road and Tennent Street.

Roof Clay tiles
RWG uPVC
Walling Brick, roughcast
Windows uPVC

Historical information

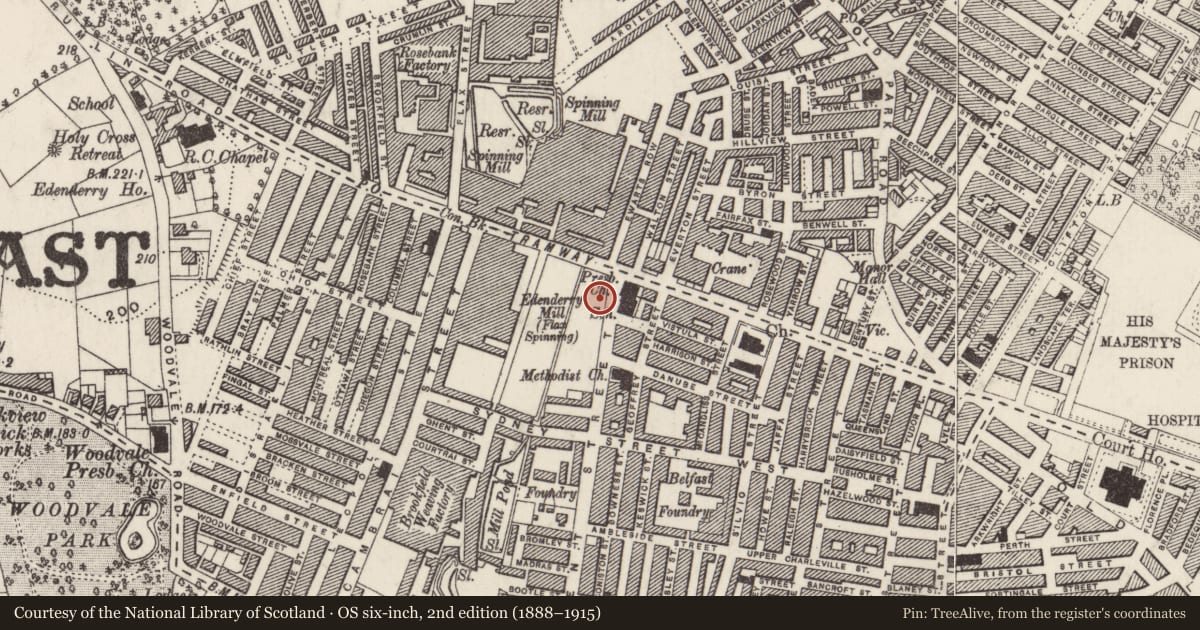

Constructed as a part of Edenderry Terrace, the building first appears on the fourth edition OS map (1920-31) on a previously undeveloped site, which formed part of Edenderry flax spinning mill complex. Prior to construction the area had developed rapidly during the mid 19th century as a consequence of the thriving linen industry and the expanding industrial workforce. Erected between 1907-09 the building forms part of a residential terrace, which was built in stages over this period of time and comprises houses of similar design (HB File). This is confirmed by the Annual Revisions (1906-15) in which the house and yard were added in 1909 at a value of £14 10s. The first recorded occupant is Richard Christie, followed in 1911 by J. Follis, a wood turner in a local mill (Census 1911). The increased value of this building compared to others in the terrace is a likely result of the projection of the upper two storeys from the main building line, giving this house a larger area.

The house is first listed as No.5 ‘Edenderry Gardens’ in the 1910 Street Directory but in the following decades it became renumbered as part of Tennent Street. In the first General Revaluations (1935) the value of the house and garden increased to £21 with J. Follis still the occupier.

Prior to the building and sanitation regulations of the late 19th century, houses were often shared by a number of families, with no drainage, water supply or rear access, meaning waste from the privy and ash pit was carried through the scullery (Wiener). Constructed by the Edenderry Spinning Company, this house is representative of the design ethos associated with early 20th century terrace housing; intended for occupation by one family with the provision of a rear yard accessible by a passage at the front, a number of sizable windows on the main elevation and the modern amenities of the time.

The house and terrace were built to the designs of the Belfast-based architectural partnership, Robert Hill and Edwin Kennedy (DIA). Constructed toward the end of the city’s second great building phase the house demonstrates detailing from the Arts and Crafts movement, including dormers, bay windows, roughcast and irregular rooflines (HB File; Larmour).

The building remained under ownership of Edenderry Spinning Company until at least 1972 (second General Revaluations (1956-72). The Spinning Company continued to operate on the site to the rear of the property until 1988 and the area has since become an industrial park (Street Directories).

The HB File notes some late 20th century repairs and alterations.

References

Primary Sources

1. PRONI OS/6/1/60/1 First Edition Os Map (1832-33)
2. PRONI OS/6/1/60/2 Second Edition OS Map (1857)
3. PRONI OS/6/1/60/3 Third Edition OS Map (1901)
4. PRONI OS/6/1/60/4 Fourth Edition OS Map (1920-31)
5. PRONI OS/6/1/60/5 Fifth Edition OS Map (1920-38)
6. PRONI VAL/12/B/43/M/3 - Annual Revisions (1906-15)
7. PRONI VAL/12/B/43/M/6- Annual Revisions (1916-30)
8. PRONI VAL/3/B/3/16- First General Revaluation (1935)
9. PRONI VAL/4/B/7/35- Second General Revaluation (1956-72)
10. Belfast and Ulster Street Directories (1902-1990)
11. Census of Ireland (1911)
12. HB File (HB26/36/001F)

Secondary Sources

1. Larmour, P “Belfast, An Illustrated Architectural Guide” Friars Bush Press, Belfast (1987)
2. Wiener, R “The Rape and Plunder of the Shankill” Farset Co-operative Press Ltd, Belfast, 1978 (2nd ed 1980).
3. www.dia.ie - Dictionary of Irish Architects online

Criteria for listing: architectural interest

Not listed

Criteria for listing: historic interest

Not listed

Evaluation

Three-storey, single-bay terraced house of brick construction, dating from 1907-09. Designed by the architectural firm Hill and Kennedy, the building forms part of a group with the other houses in the terrace (HB26/36/001A-J), built by the Edenderry Spinning Company, which was located to the west of the site. The group as a whole has suffered from inappropriate incremental changes. Although of significance in that they demonstrate key elements pertaining to the Arts and Crafts movement at the time with varied detailing and roofline, their interest has been seriously compromised by loss of historic fabric and detailing and they are no longer of special architectural or historic interest.
